Q-1800

Categories: , , , ,

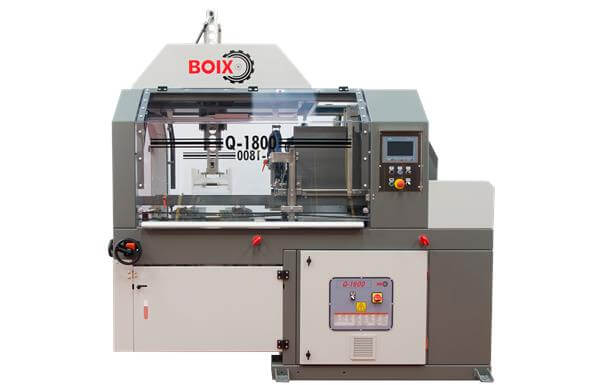

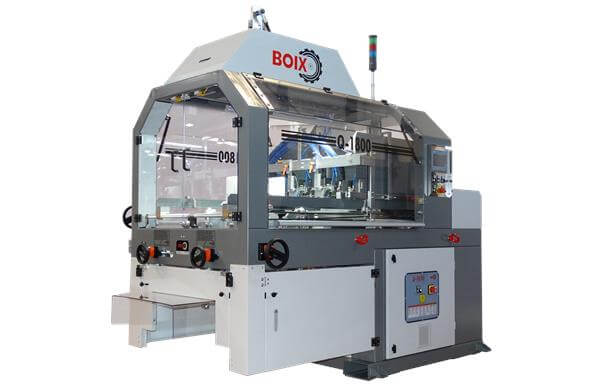

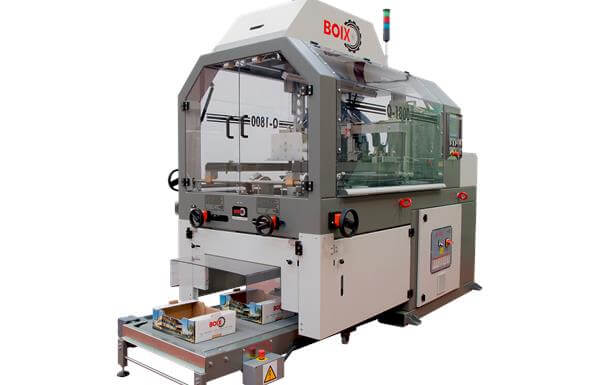

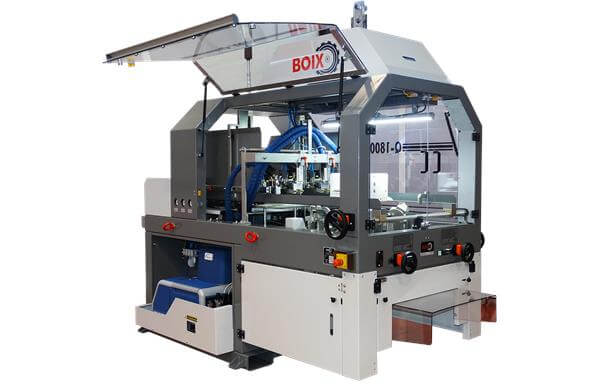

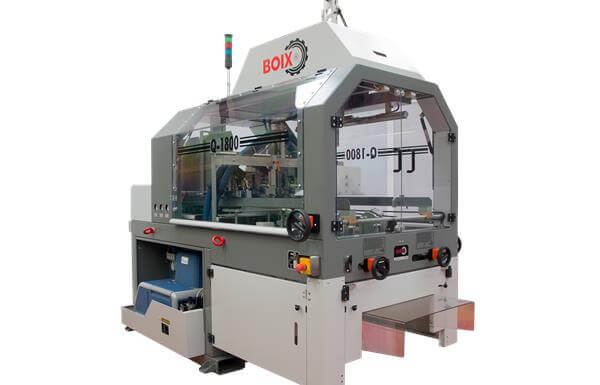

Boix Maquinaria has developed the Q-1800 in order to satisfy all those customers who require a compact, small size and easy to use machine .

The Q-1800 can form up to 1,800 trays/hour, it is exclusively developed for C-1 and Plaform carton forming.



Contact:



Description

The design of the Q-1800 combines a compact solution and easy operation , resulting in a machine that delivers:

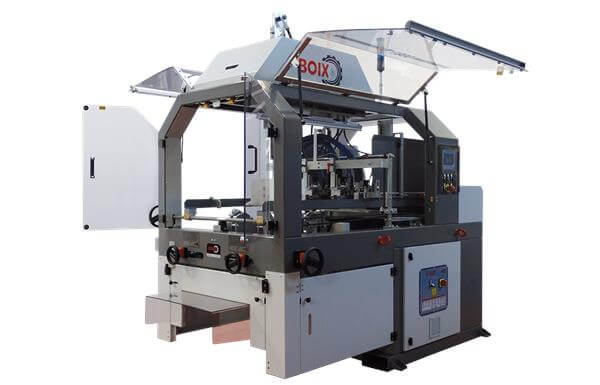

  • Convenient access to all components.
  • Sustained production of up to 1,800 trays/hour.
  • Quick change over system.
There are 2 versions of the machine:
  • Plaform® machine with former working in servo mode.
  • C-1 Machine with former working in servo mode.
The Q-1800 also includes other improvements such as:
  • Pusher driven by ELGA: guarantees you a constant glue shot regardless of the working speed.
  • Feeder by Venturi with suction cups
  • Quick box change for boxes of the same base and different heights. (1 minute).
  • Easy access.

Additional information

Operation

Mechanical, Electrical and Pneumatical
Glue System

Glue Injection, Hot Melt (Nordson Mesa 9:4)
Box Design

C-1, Plaform
Production

From 400 up to 1800 TpH (8 Speeds).
Total Power

6,5 Kw (W/O Compressor)
Net Weight

1.170 Kg
Electrical Supply

380/220 V (3F+N+PE) – 50/60 Hz
Change of Size

By clamps with threaded rods and counters
CHANGE OF SIZE (IN TIME)

5 min.
Working Air Pressure

7 Bar.
Air Consumption

300 litres/minute (erecting Plaform® boxes)
Machine Frame

4mm Steel plate
Machine Dimensions

L: 2.675 mm. A: 1.585 mm. H: 2.170 mm

Boxes Types

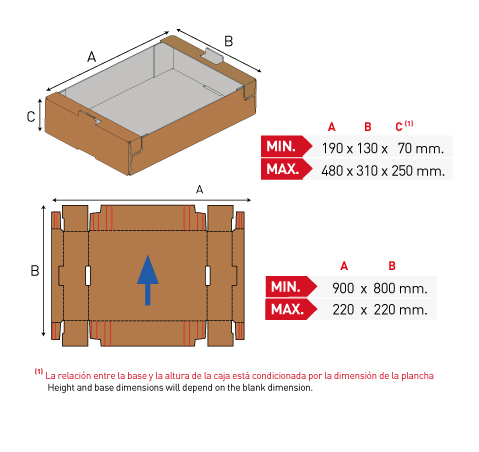

  • Plaform® Box
    Read more Quick View

    Plaform® Box

    Plaform® Box is one of the most popular box designs that Boix has made for the fresh produce market.

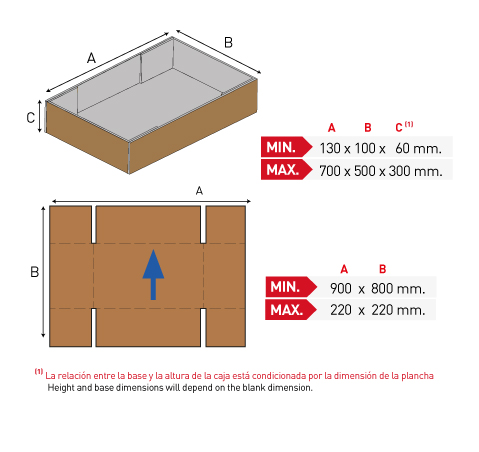

  • C-1 trays
    Read more Quick View

    C-1 trays

    C-1 trays represent the most basic box structure, and also one of the most widely used in the different markets, mainly due to their development and use of cardboard.

Related products

  • MCT-1/TS
    Read more Quick View

    MCT-1/TS

    The MCT-1/TS is an automatic machine for forming and gluing punnets and small trays with top ledges on 4 sides, also called Top Seal.

    • Double head machine.
    • Speed up to 4,800 punnets/hour (2,400 per head).
    • It is prepared for forming both square and octagonal Top Seal punnets.

  • HAT MINI
    Read more Quick View

    HAT MINI

    The HAT Mini cardboard box lidder is specially designed for automatic lidding of cardboard boxes using Hot-Melt, ensuring a perfect seal for the boxes.

    This model offers the following advantages:

    • Estimated production of up to 1,300 lids per hour.
    • Improves productivity and optimises the production line.
    • Protects your products from damage, theft and/or contamination.
    • Small size and low maintenance machine.

  • Inserter
    Read more Quick View

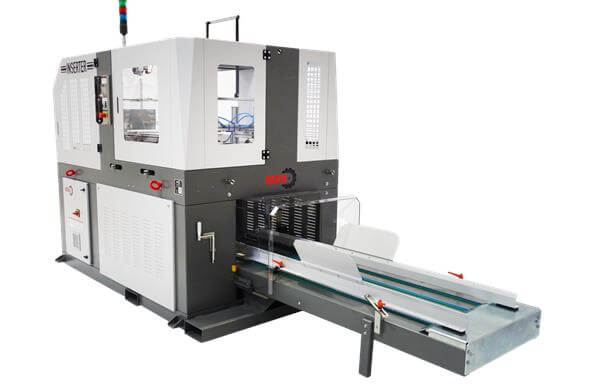

    Inserter

    The Inserter is a machine that allows us to form a Cover Box and insert the Bottom Box into it .

    The objective of this procedure is: “To be able to fill the box with products avoiding that the overfilling collapses the bottom box which would make it impossible to place the lid box.”

    This system is widely used in citrus products where they are filled with many kilos.

    • The machine achieves a maximum output of up to 1,000 boxes per hour and can be incorporated into a production line.
    • The Inserter is equipped with a belt for the insertion of the bottom box, already assembled, and a 1,500 mm blank feeder (for approximately 150 blanks), which increases autonomy and avoids interruptions in production.

  • MBL-3P (Dual)
    Read more Quick View

    MBL-3P

    The MBL-3P machine is specially designed to form Bliss box forming.

    • This model can only form Bliss boxes.
    • It has 6 speeds and can reach 2,000 boxes/hour.
    • It has 3 blank feeders, which helps to optimize productivity.

  • Q-4000
    Read more Quick View

    Q-4000

    Double head machine specially designed for the forming of C-1 type trays, Conical trays and Bottom and Lid Boxes.

    • Hi production up to 4000 trays/hour.
    • Possibility of adjusting each head with different sizes of boxes.

  • Q-4000/DE
    Read more Quick View

    Q-4000/DE

    Dual head machine capable of forming multiple tray designs and sizes.

    The Q-4000/DE is capable of forming different tray designs on each head, including the most standard ones (Plaform, P-84, C-1, Open Column., etc.).

    • High production up to 4000 trays/hour.
    • Possibility of adjusting each head with different sizes of trays.

  • MBL-3P (Dual)
    Read more Quick View

    MBL-3P DUAL

    The Premium MBL-3P DUAL machine is specially designed for forming Bliss Boxes, but unlike the standard MBL-3P it can also assemble other box formats, such as: Plaform, P-84 and Open Column .

    It can reach a speed of up to 2,000 boxes/hour.



  • FP-4/2M
    Read more Quick View

    FP-4/2M

    The FP-4/2M is one of our most flexible machines, as they are capable of forming multiple box designs (Plaform, P-84, Citrus, etc.), but are specially designed for forming all types of column boxes, whether open, closed or L-Column.

    • This machine has 3 different models: FP-4/2M-1, FP-4/2M-2 and FP-4/2M-3, depending on the type of boxes they can form.
    • It can achieve a sustained output up to 3,000 trays per hour.

  • Q-175
    Read more Quick View

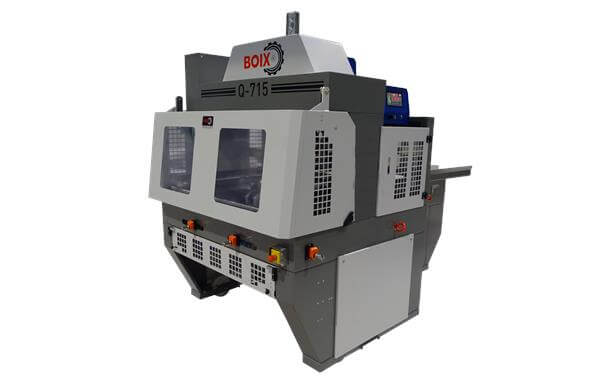

    Q-715

    It is the perfect packaging solution for all those companies that require a compact, functional carton former suitable for a sustained production of 500 to 900 cartons/hour.

  • EC-1
    Read more Quick View

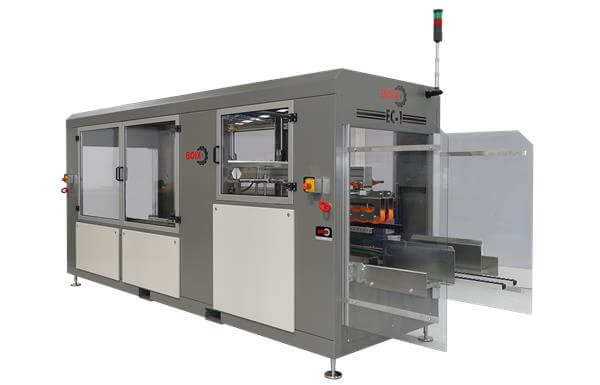

    EC-1
